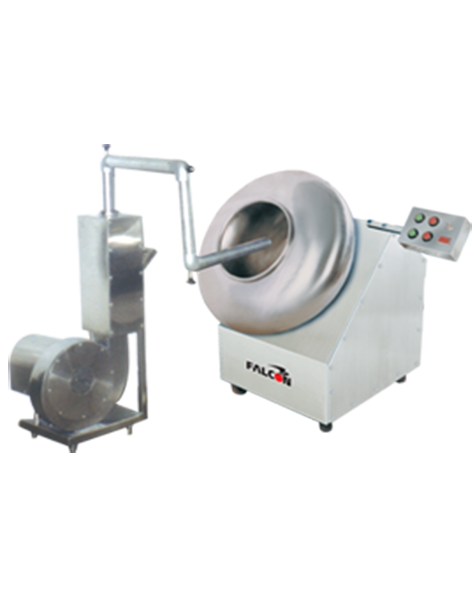

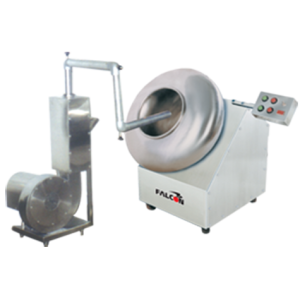

Coating Machine

Product in stock

Price: $0.00

Shipping:$0.00

Salient Features: Coating Pan is engineered to the perfection from SS 304 (SS 316 optional). Totally enclosed machine drive and hot air blowing system. 30”, 36”, 42” or 48” Coating Machine has variable speed drive. Hot air blowing system is separate. 60” or 72” Coating Machine has two speeds with step pulley without hota i r b lowing system. Hot air blowing system is with temperature control probe.

Quantity
Loading Updating cart...

Salient Features:- Coating Pan - Tablet Coating Machine with Hot Air Blowing System

  • Coating Pan is engineered to the perfection from SS 304 (SS 316 optional).
  • Totally enclosed machine drive and hot air blowing system.
  • 30”, 36”, 42” or 48” Coating Machine has variable speed drive. Hot air blowing system is separate.
  • 60” or 72” Coating Machine has two speeds with step pulley without hot air blowing system.
  • Hot air blowing system is with temperature control probe.

Technical Specifications:- Coating Machine

MODEL12"18"24"30"36"42"48"60"72"
Loading05720406090110150200
Capacity in Kg.to 8to 25to 45to 80to 100to 120to 210to 250
Motor HP0.50.51.01.51.52.02.05.07.5
Blower HP0.250.250.50.51.01.01.02.02.0
Blower fan Volume CFM9090150150150150150300300
Heater Capacity in KW1.01.03.03.03.03.03.05.05.0
