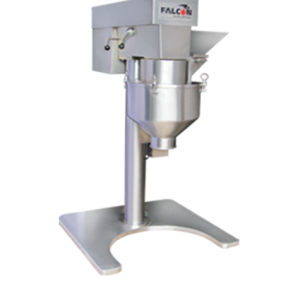

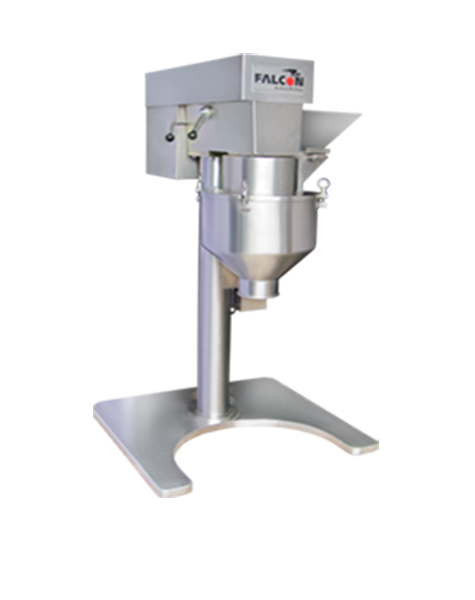

Multi Mill

Product in stock

Price: $0.00


Salient Features: Designed for continuous wet or dry granulation. Beaters & scraper blades made of SS 304 (SS 316 Optional) Easy to dismantle and clean Beater drive equipped with reversible switch. Castor wheels provided for mobility. Flameproof electrical components can be provided at extra cwt

Loading Updating cart...

Technical Specifications - Multi Mill - Wet/Dry Granulation Milling Machine for Pharmaceutical

ModelFALCON MM – 200
Output50 to 200 Kgs./Hr.
Rotor Assembly Diameter250 mm. Approx.
Rotor Speed750 / 1500 / 2300 / 3000 RPM
Screen dimension Inner Diameter265 mm./ Height 140 m
Motor3 HP. / 1440 RPM / 3 Ph.
Starter"DOL" with reversible switch
Material charging height1460 + 5 mm.
Material discharging height760 + 5 mm.

*Varies according to product characteristic & and screen type.
