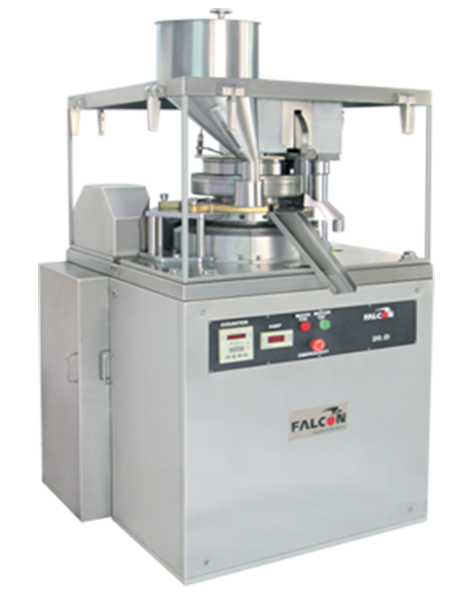

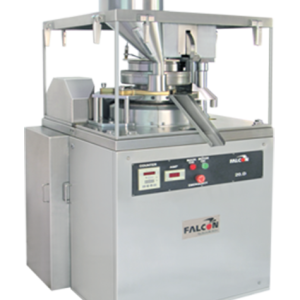

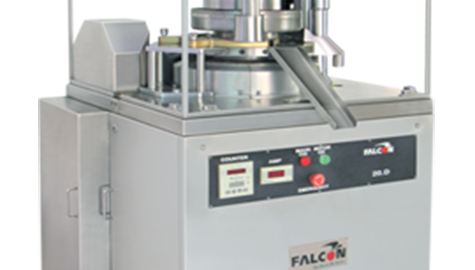

Salient Features:- Single Rotary Tablet Press Machine
- In compliance with cGMP Guideline.
- C.I. Body and C.I. Middle plate Paint free tablet manufacturing zone.
- Turret of Special Grade S.G. Iron casting
- Upper punch penetration system.
- Electronic. Digital Tablet cum RPM Counter.
- Inter lock switches to all Guards.
- Lower Guard of polished Stainless Steel & Upper Guards of Acrylic Material.
- Aluminum Turret Guards
- Effective Dust Extraction Nozzles.
- Imported needle roller bearing provided at the bottom of turret.
- Reverse direction motion protection is provided to avoid accident.
- Safe / Simple operates & Easy to Maintain.
- Main motor AC VF Drive (Optional)
- Force Feeder (Optional)
- Auto Lubrication Pump (Optional)
- Powder Level Sensor (Optional)
- This tablet manufacture machine is also known as Tablet compression machine/pill press machine, which is used for Camphor Tablet, Naphthalene Ball and Salt Ball Tablets
TECHNICAL SPECIFICATIONS:- Bolus Tablet Press - Single Rotary Tablet Press Machine
| MODEL – D4 TYPE | FALCON-16 ‘D’ | FALCON-20 ‘D’ | FALCON-12(SPECIAL) |
|---|
| Tooling | “D” | “D” | SPECIAL/Bolus |
| No. of Station | 16 Stn. | 16 Stn. | 12 Stn. |
| Operating Pressure | 12 Ton | 12 Ton | 12 Ton |
| Max. Tablet Diameter | 23 mm | 23 mm | 40 mm |
| Max. Depth of Fill | 20 mm | 20 mm | 20 mm |
| Upper Punch Penetration | 1.5 to 8 mm | 1.5 to 8 mm | 1.5 to 8 mm |
| Main Electric Motor | 3.70 kW / 3Hp / 1440 RPM / 415 V / 50 Hz / 3 Ph | 5 Hp / 3 Ph |
NOTE : DUE TO CONTINIOUS IMPROVEMENTS IN THE MACHINERIES, SPECIFICATION OF THE MACHINERIES IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE.
