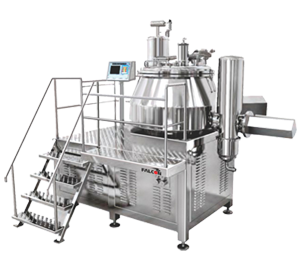

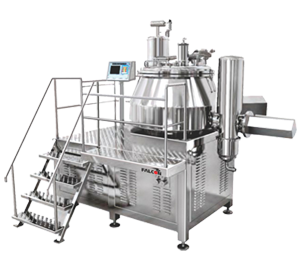

Lab RMG (Rapid Mixture Granulator) (Interchangeable) has been devloped for mixing of ingredients used for wet granulation for R & D. Multi-blade impeller & chopper design is for better floating and tumbling of material for dry & wet mixing; it forms a uniform wet granules
Salient Features:- RMG (Rapid Mixture Granulator)
- Contact parts SS 316 8 Non contact parts SS 304
- Three Four blade impeller (customized) design
- Four blade chopper design
- Special design air purging facility as an option
- Manually operated discharge
- Structure MS & Covered with SS 304
- Manual operated push button control
- PLC based operating panel can be provide as an option
- Inter changeability design for lab model up to 15 litre
Technical Specification:- RMG (Rapid Mixture Granulator) for Dry/Wet Granulation Process
| MODEL / Size | 2.5 | 5 | 7.5 | 10 | 15 |
|---|
| Gross Volume (Litres) | 2.5 | 5 | 8.0 | 10 | 15 |
| Working Volume (Litres) | 2.0 | 4.0 | 6.4 | 8.0 | 12.0 |
| Impeller Motor KW/HP | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Impeller Blade RPM | 15 to 150 | 15 to 150 | 15 to 150 | 15 to 150 | 15 to 150 |
| Chopper Motor KW/HP | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Chopper Motor RPM | 150 to 2800 | 150 to 2800 | 150 to 2800 | 150 to 2800 | 150 to 2800 |
